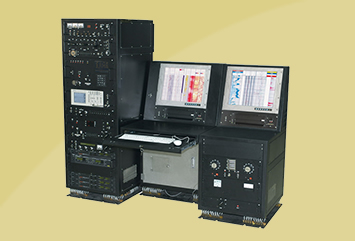

HH-2530 IMAGING LOGGING SURFACE SYSTEM

The system is composed of four main parts, they are: a Control Rack, a Display and Operating Desk, a Power Supply Rack and a Truck Depth Panel SDDP-C. The Control Rack consists of a Perforating and Coring Panel (CSP), a Signal Switchover Cabinet (CIP)...
View Details

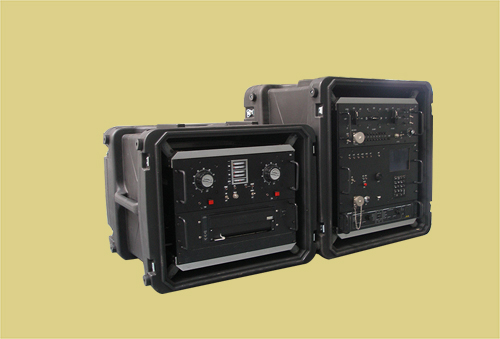

HH-530 Portable Logging Surface System

HH-530 Portable Logging Surface System consists of three parts: BOX1, BOX2 and a laptop. Its composition diagram refers to the attached figure. The optional parts could be chosen based on the user’s requirement. It is recommended that some key parts, such as GEP, TPS, etc. could be ordered as spare parts.
View Details

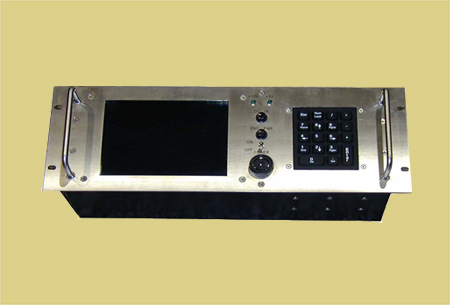

STANDALONE DEPTH DISPLAY PANEL, SDDP

Process depth measurements, using two encoders and the magnetic markers on the cable; Intensify magnetic markers; Process line speed and estimate depth of arrival to casing, touchdown and top of the well; Process tension from loadcell; Process casing collars (CCL);
View Details

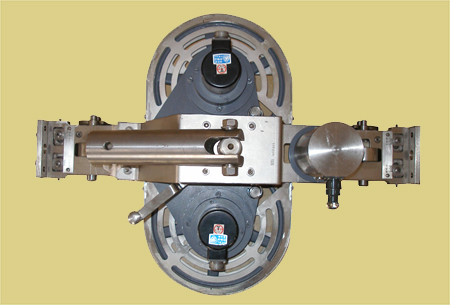

DEPTH MEASUREMENT AND TENSION DEVICES

It consists of a straightened-cable and dual-wheel depth measurement device (MD5700), and a load cell and its cable line. They provide pulse signals and cable tension signals for logging depth devices.
View Details
