Product Name：NBDT Net-Oriented Inclinometer Tool
|
Type：
|
|
|
producer：
|
|
|
Description：
|
The inclination logging tool can measure the specifications of open hole wells such as well inclination angle, azimuth angle, No.1 plate azimuth angle, relative azimuth angle, etc.
|
FunctionTechnical specificationsField example
The inclination logging tool can measure the specifications of open hole wells such as well inclination angle, azimuth angle, No.1 plate azimuth angle, relative azimuth angle, etc.
Working Temperature: | -25 -- 175 ℃ |
MAX pressure: | 140MPa |
Storage Temperature: | -40--70 ℃ |
Shock: | 100 g 11 ms |
vibration: | 7.5g 10-60Hz 3D |
Power supply: | 250VAC 50HZ |
Measuring range: | DEVI : 0°-180° |
AZIM : 0-360° |
AZ-I : 0-360° |
RB : 0-360° |
Measurement accuracy: | DEV±0.2° |
AZIM ± 2° (measured at an deviation angle of 10° ) |
AZ-I±2° ( measured at an deviation angle of 10° ) |
RB±2° |
When DEV≤ 1°, allowing unfixed azimuth |
When DEV is1-2°, the azimuth angle tolerance is ±3° |
length: | 1700mm; |
OD: | Φ92mm |
weight: | 30Kg |

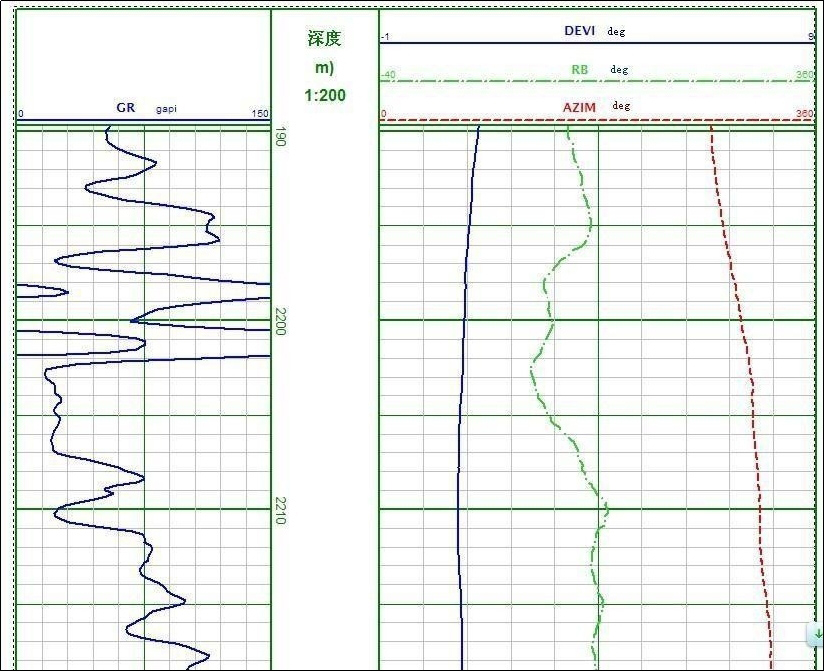

Field example
