Product Name：NLDS-MFS Net-Oriented Litho Density Sonde and Micro Sphererical Focused Sonde
|
Type：
|
|
|
producer：
|
|
|
Description：
|
The Litho-Density tool uses a gamma source (1.5Ci, Cs137) and two detectors of different spacing to contact the sidewall directly. Based on Photoelectric Effect and Compton Effect, corresponding energy windows are set up, recording the gamma ray of various windows, and measuring the lithology and density of formation.
|
FunctionTechnical specificationsField example
The Litho-Density tool uses a gamma source (1.5Ci, Cs137) and two detectors of different spacing to contact the sidewall directly. Based on Photoelectric Effect and Compton Effect, corresponding energy windows are set up, recording the gamma ray of various windows, and measuring the lithology and density of formation.
The Micro-Spherical Focused sonde can provide the flushed zone resistivity and it is used in the formation liquid saturation calculation along with other resistivity tools.
Technical specifications |
Working Temperature: | -25 -- 150 ℃ ( 175 ℃) |
MAX pressure: | 100MPa ( 140MPa ) |
Storage Temperature: | -40--70 ℃ |
shock: | 100g 3D ( 11ms ) |
Vibration: | 7.5g 3D ( 10 ～ 60Hz ) |
Power supply: | ± 12 V DC |
Density |
Measuring range: | Bulk density: 1.0 ~ 3.0g/cm3 |
Photoelectric index: 1.0~14Pe unit |
Test speed: | 550m/h |
Vertical resolution: | 360mm |
Detection depth: | 50~240mm |
Measuring accuracy: | ±0.025g/cm3 |
Photoelectric index: | 1.4 and 6 , ±6% |
MFS |
Measuring range: | 0.2~2000Ωm |
Vertical resolution: | 250mm |
Detection depth: | 100mm |
Measuring accuracy: | 0.2~200Ωm , ±5% |
200~1000Ωm , ±10% |
1000~2000Ωm , ±15% |

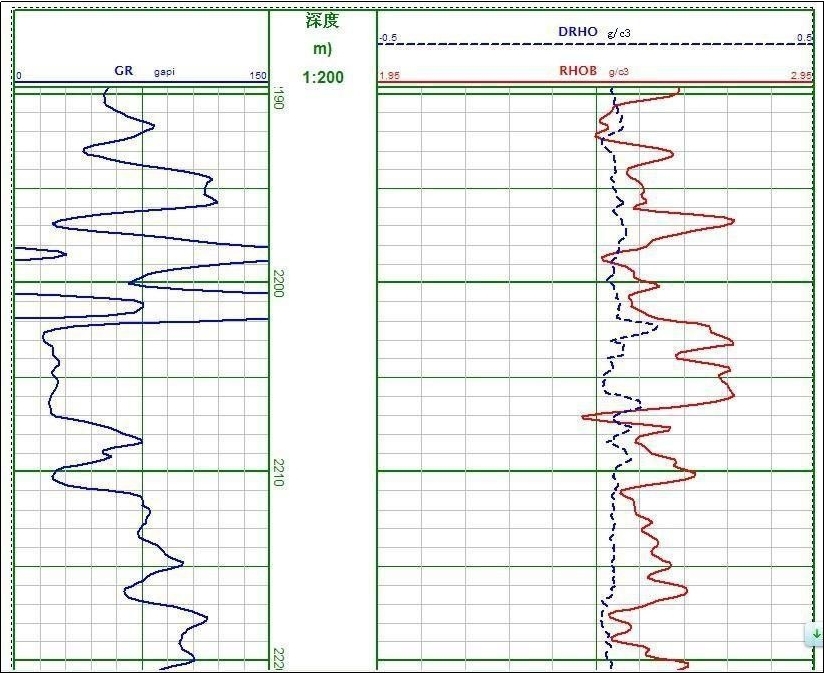

Field example
Full spectrum of litho-density
