Product Name：NHAS Net-Oriented Hydraulic Activation Sub
|
Type：
|
|
|
producer：
|
|
|
Description：
|
It uses the hydraulic mechanical principle to push combined logging sonde of spectro density and micro-spherically focused logging to the side wall, measure the formation parameters correctly, and provide the caliper logging data.
|
FunctionTechnical specificationsField example
It uses the hydraulic mechanical principle to push combined logging sonde of spectro density and micro-spherically focused logging to the side wall, measure the formation parameters correctly, and provide the caliper logging data.
Working Temperature: | -25 -- 175 ℃ |
MAX pressure: | 140MPa |
Storage Temperature: | -40--70 ℃ |
shock: | 100g 3D ( 11ms ) |
Vibration: | 7.5g 3D ( 10 ～ 60Hz ) |
Power supply: | Folding: 127VAC/50Hz , 800mA <60S; |
Open: 115VAC/50Hz , 120Ma <2S |
Measuring range: | 4.5'~21' |
Measuring accuracy: | 0.25' |
OD: | 114mm |
Effective length: | 3150mm |
Push force : | >45Kg |
Closing time: | ≤60S |
Opening time: | ≤2S |

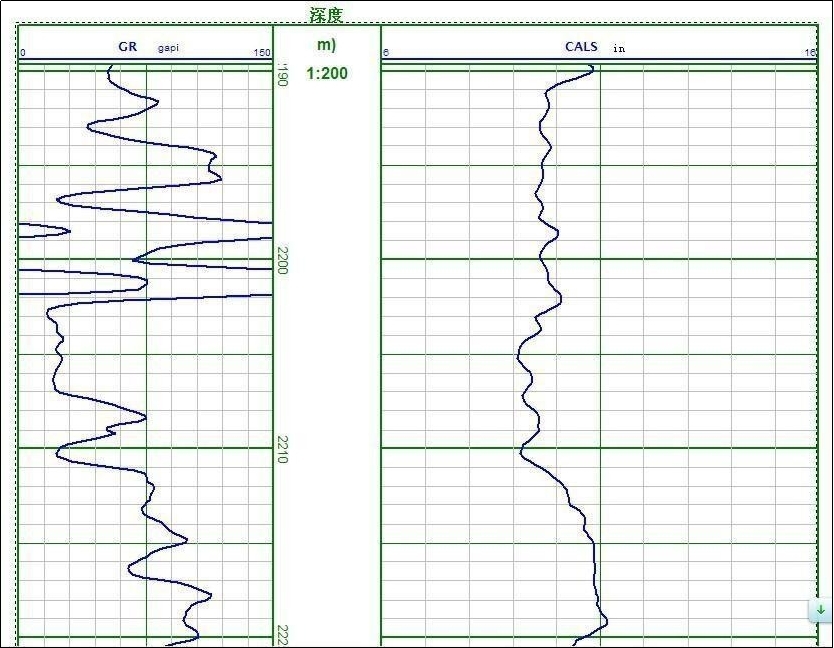

Field example
