Product Name：HH2580 Logging System
|
Type：
|
|
|
producer：
|
|
|
Description：
|

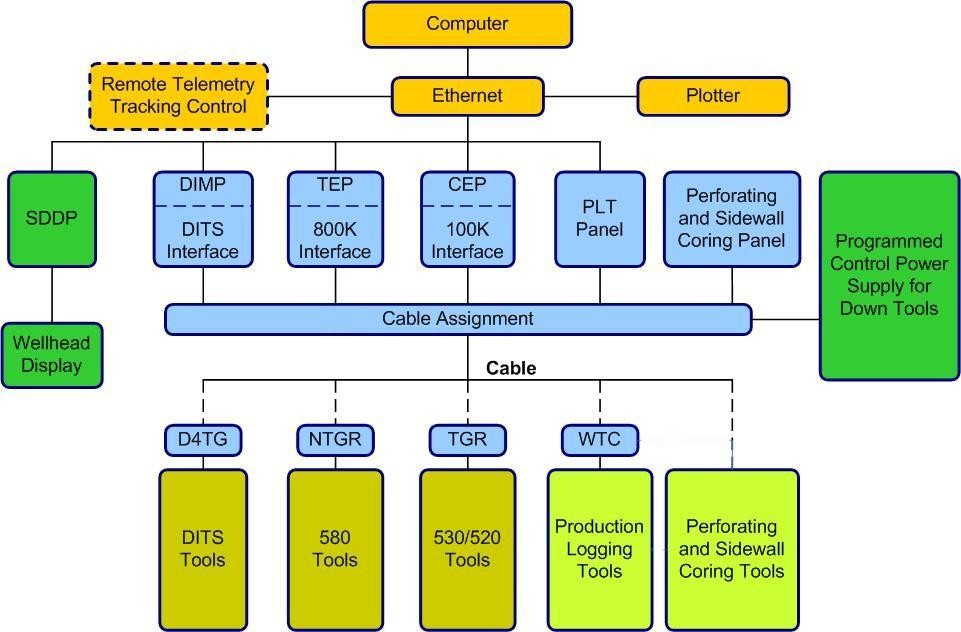

Composition：
1）Industrial computer (double configured or a laptop optionally)
2）580 interface panel
3）DITS/INSITE interface panel
4）Cable switchover panel
5）Net-Oriented exchanger panel
6）Sorenson DC power supply panel
7）Two ELGAR power supply panels ( programmable controlled, 1250/2500 W),
8）TPS panel (tool power supply)
9）Remote satellite communication interface panel
|
CompositionSpecificationFeatures
1）Industrial computer (double configured or a laptop optionally)
2）580 interface panel
3）DITS/INSITE interface panel
4）Cable switchover panel
5）Net-Oriented exchanger panel
6）Sorenson DC power supply panel
7）Two ELGAR power supply panels ( programmable controlled, 1250/2500 W),
8）TPS panel (tool power supply)
9）Remote satellite communication interface panel
Physical specifications |
Product Name | Dimensions (depth x width x height) (unit: mm) |
High cabinet | 793×540×1750 (including shock absorber) |
Workbench | 820×1300×770 ( including shock absorber) |
Low cabinet | 750 ×550×730 |
Environmental specifications |
Environment temperature | 0℃ ～ +50℃ |
Storage temperature | -20℃ ～ +75℃ |
Relative humidity | ﹤95% |
Vibration (3D) | 3g 10～60Hz (not working) |
shock(3D) | 10g 10～60Hz (not working) |
System power supply | 200VAC ~ 250VAC, 50Hz |
Tool power supply |
AC mains power supply | 0～800VAC，1A |
AC auxiliary power supply | 0～800VAC，1A |
Relay power supply | ±150V, 1A |
Acquisition channel |
Telemetry Channel: | 800Kb/s, 8Kb/S AMI code, 100Kb/S BPSK code |
5.192Kb/S Manchester code |
Analog channels: (TEP): | 5 channels, ±10V input, 12-bit A/D Programmable gain ×1, ×2, ×4, ×8, ×16 |
CEP: 19 channels, ±10V input, 12-bit A/D Programmable gain ×1, ×2, ×4, ×8, ×16 |
D/A output : | 2-channel, 12-bit D/A, 0 ~ 10V output |
Pulse counting channel: (CEP): | 6-channel, 16-bit counter, counting frequency up to 1MHz |
High-speed acoustic wave acquisition channel: (CEP): | Sampling frequency 0.5MHz/1MHz, 12-bit A/D conversion |
1）Modularization and high integration
Can be connected to a variety of logging equipment.
580 series open hole downhole tools
WTC production logging equipment
Perforation and coring
Halliburton's DITS series logging tools
Can be expanded to connect other new tools
2）Reliability
Mean Time Between Failures ≥ 3000h
3）Maintainability
Mean Time To Repair ≤ 0.5h
4）Software system
Net-Orienteded software design can realize remote communication mode from single user to multiple users.
Modularity: Equipped with the corresponding tool library can be selected according to the downhole tool string and attached to the logging software, which has strong scalability.
Static imaging can be monitored real-timely, both mono and dipole curves can be monitored real- timely, advanced processing software.
Workor can detect working status by various logging event recording, therefore, fault locating and eliminating could be easier.
